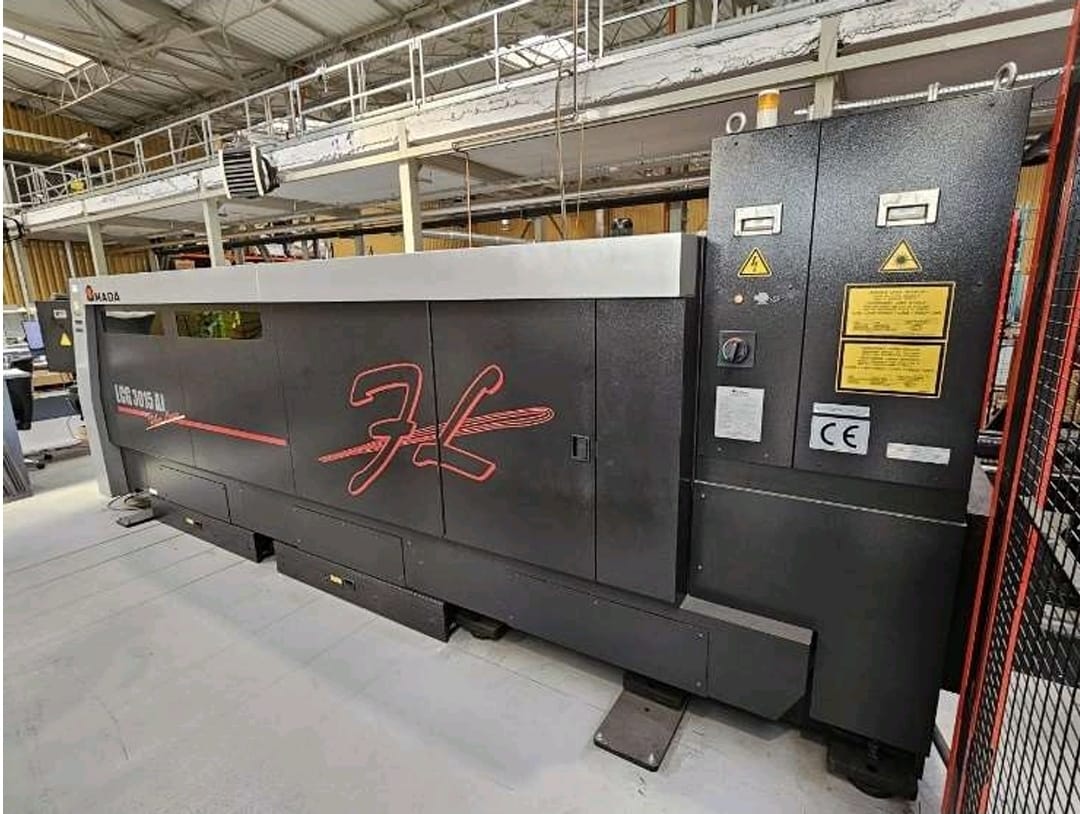

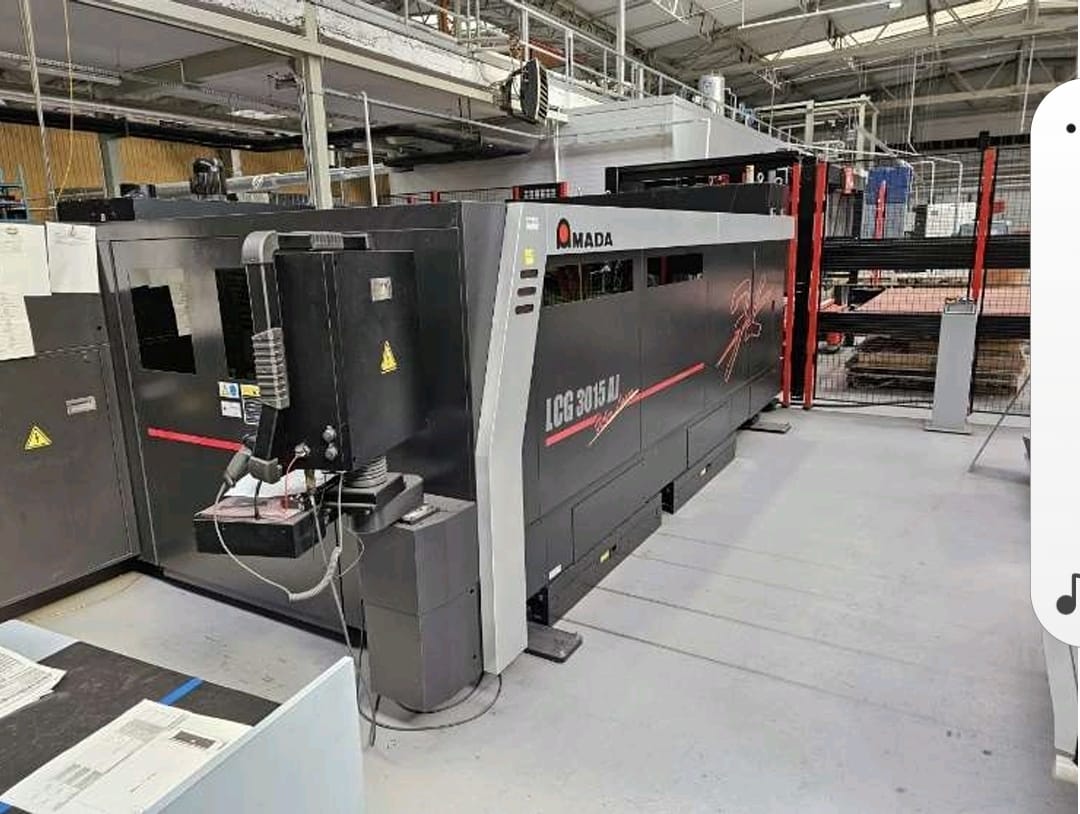

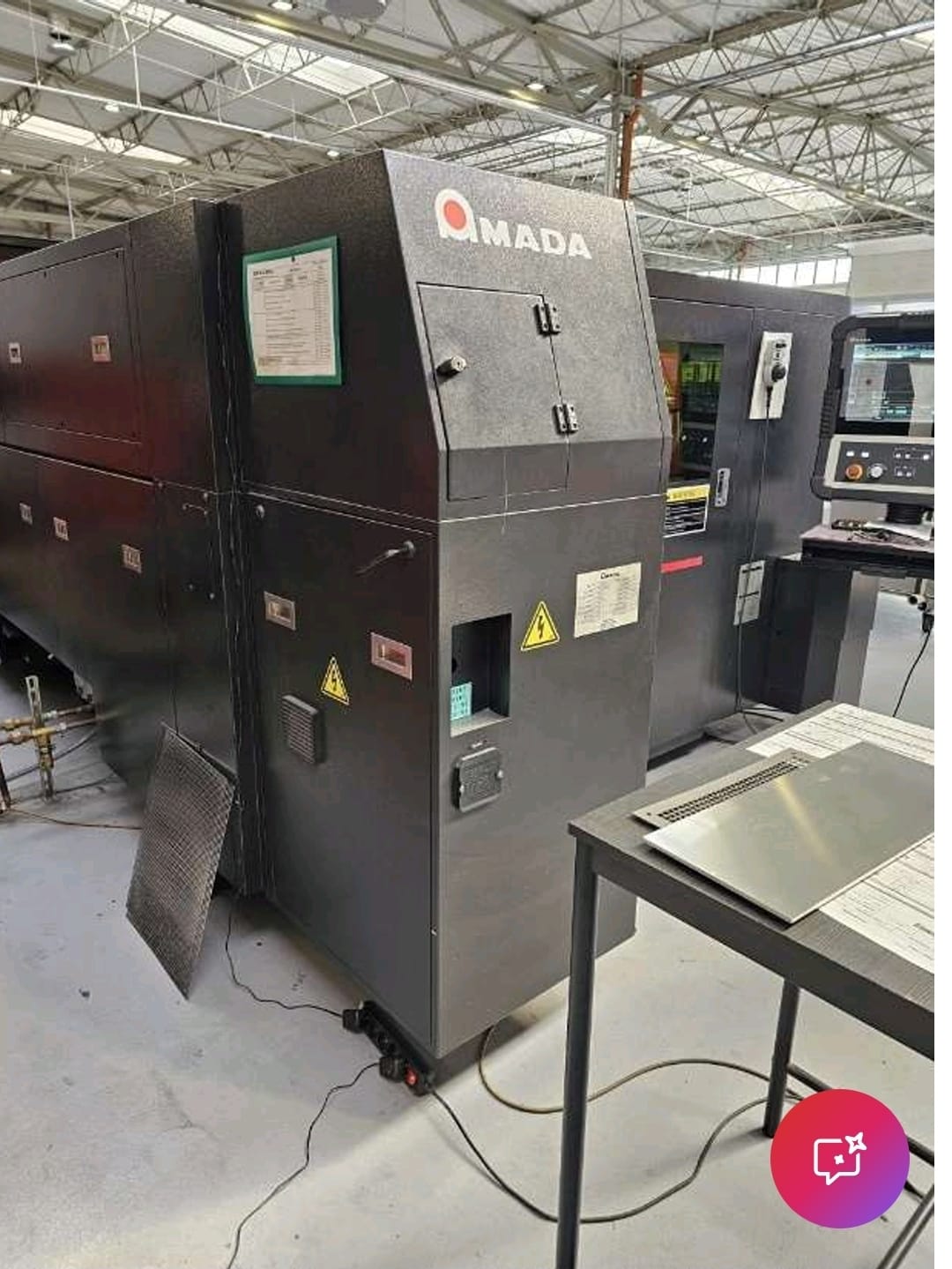

Amada LCG 3015 AJ 4kw Fibre Laser Machine with MP Flexit (Stk 2084)

Warranty: Parts and labour warranty (UK). Installation and training available.
Availability: Ex stock.
Condition: Available to view in our Warehouse near Sandbach, Cheshire, UK. Jct17 M6.
Price: P.O.A

Share this Page

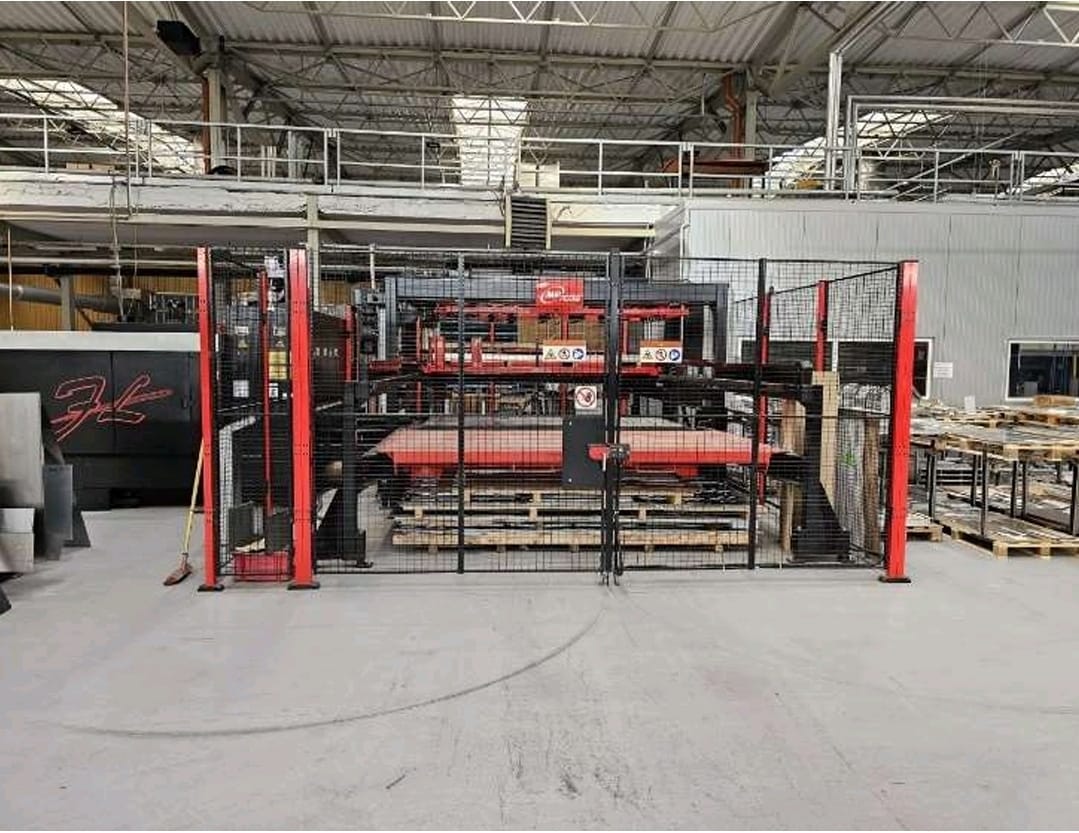

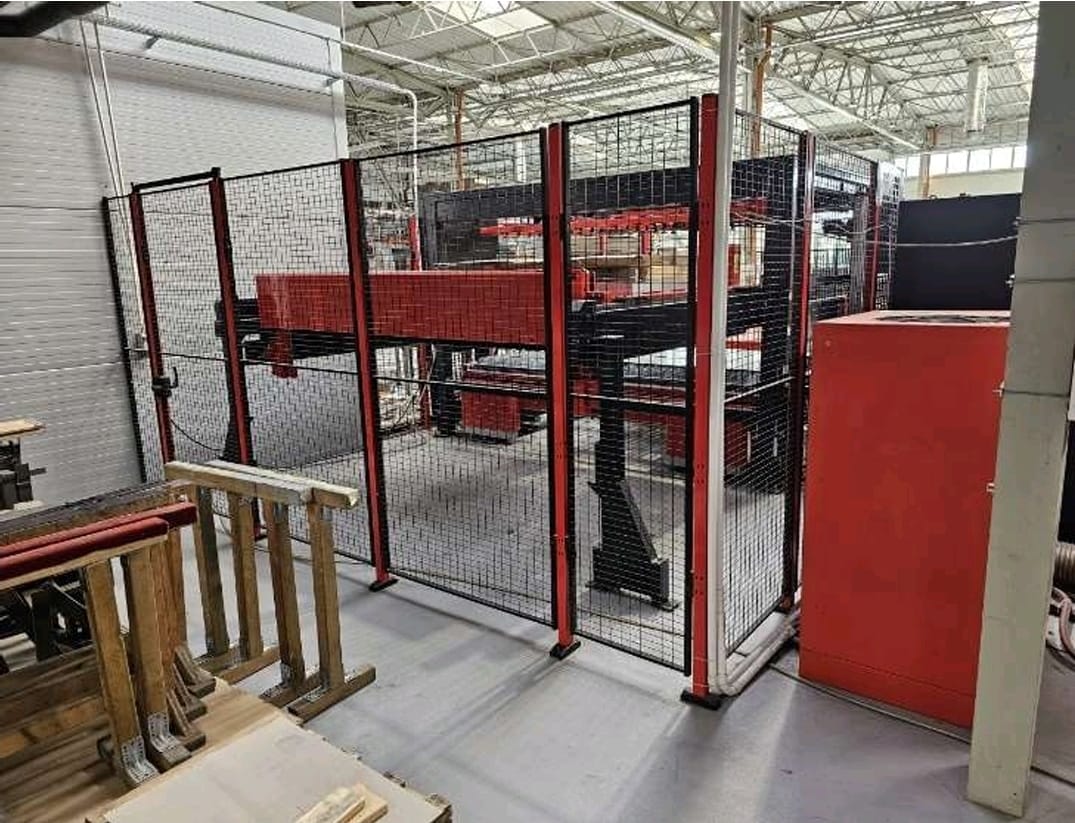

Model	Amada LCG 3015 AJ 4kw Fibre Laser Machine with MP Flexit Pallet Load\Unload System (MPF) LOW CUTTING HOURS
Year	2017
Controlled Axis	X, Y, Z axes (three axes controlled simultaneously ) + B axis
Axis Traverse Distance	3070 x 1550 x 100 mm
Max. Guaranteed Material Thickness	20 mm Mild Steel 18 mm Stainless 16 mm Aluminium 10 mm Brass 8 mm Copper
Max. Processing Dimensions	3070 mm x 1550 mm
Maximum Simultaneous feed rate	X/Y, 170m/min
Positioning Accuracy	+/- 0.01 mm
Maximum material mass	920 Kg
Rated Output	4000 W
Processing Surface height	940 mm

Machine Length (including shuttle table)	10136 mm
Machine Width	2840 mm
Machine Height	2432 mm
Machine Weight	9,300 kg
Standard Equipment	Autofocus Nozzle changer WACs Oil shot Fully automatic CAM system X-Direction Conveyor HS Capacitance Head Front & Side Access Compressed Air Cutting

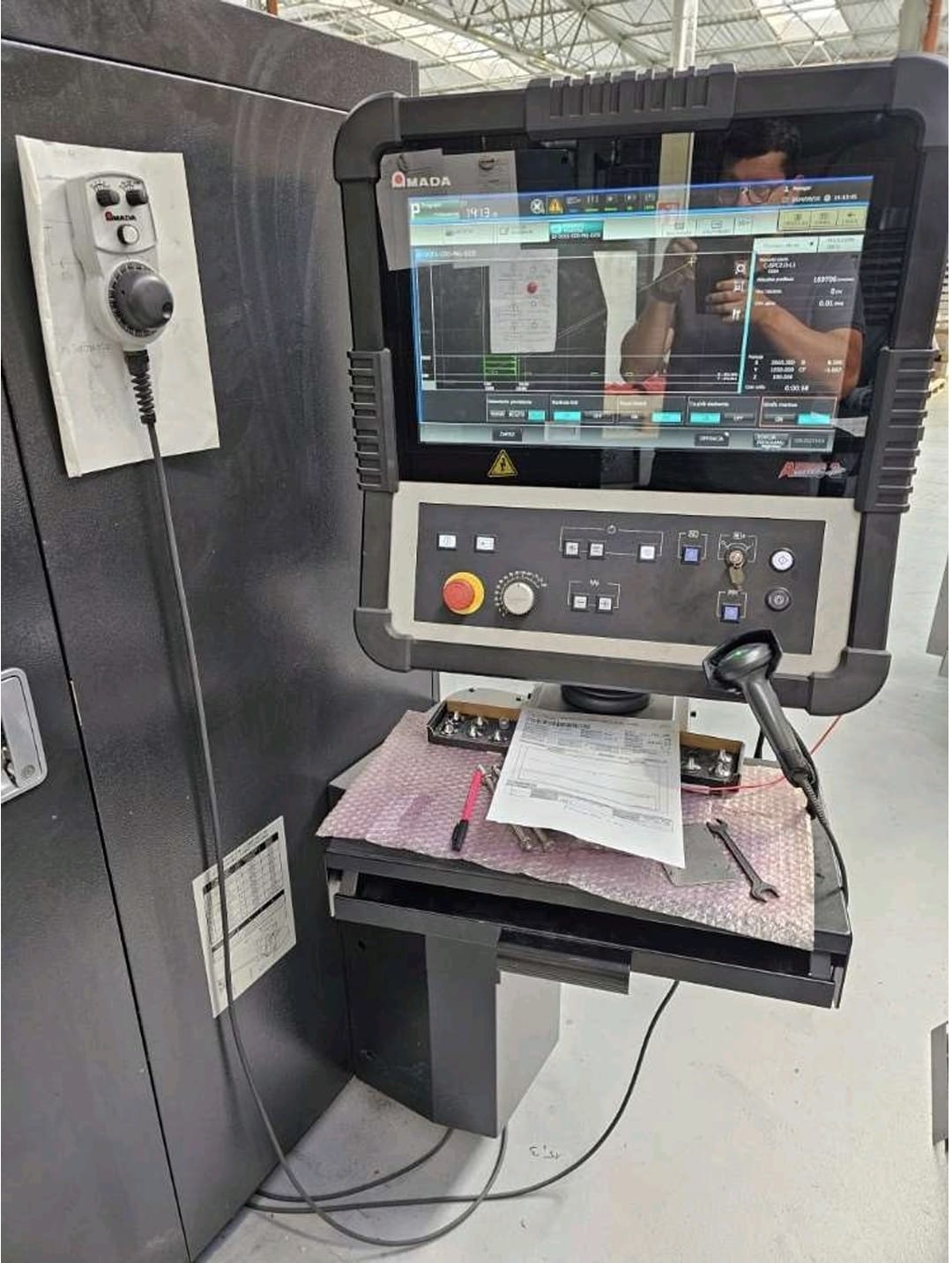

Numerical Control Model:	AMNC 3i
