Amada AE2510 Electric Punch Machine, 51 Station, 4 auto index (Stk 2050)

Warranty: Parts and labour warranty (UK). Installation and training available.
Availability: Ex stock.
Condition: Available to view in our Warehouse near Sandbach, Cheshire, UK. Jct17 M6.
Price: P.O.A

Share this Page

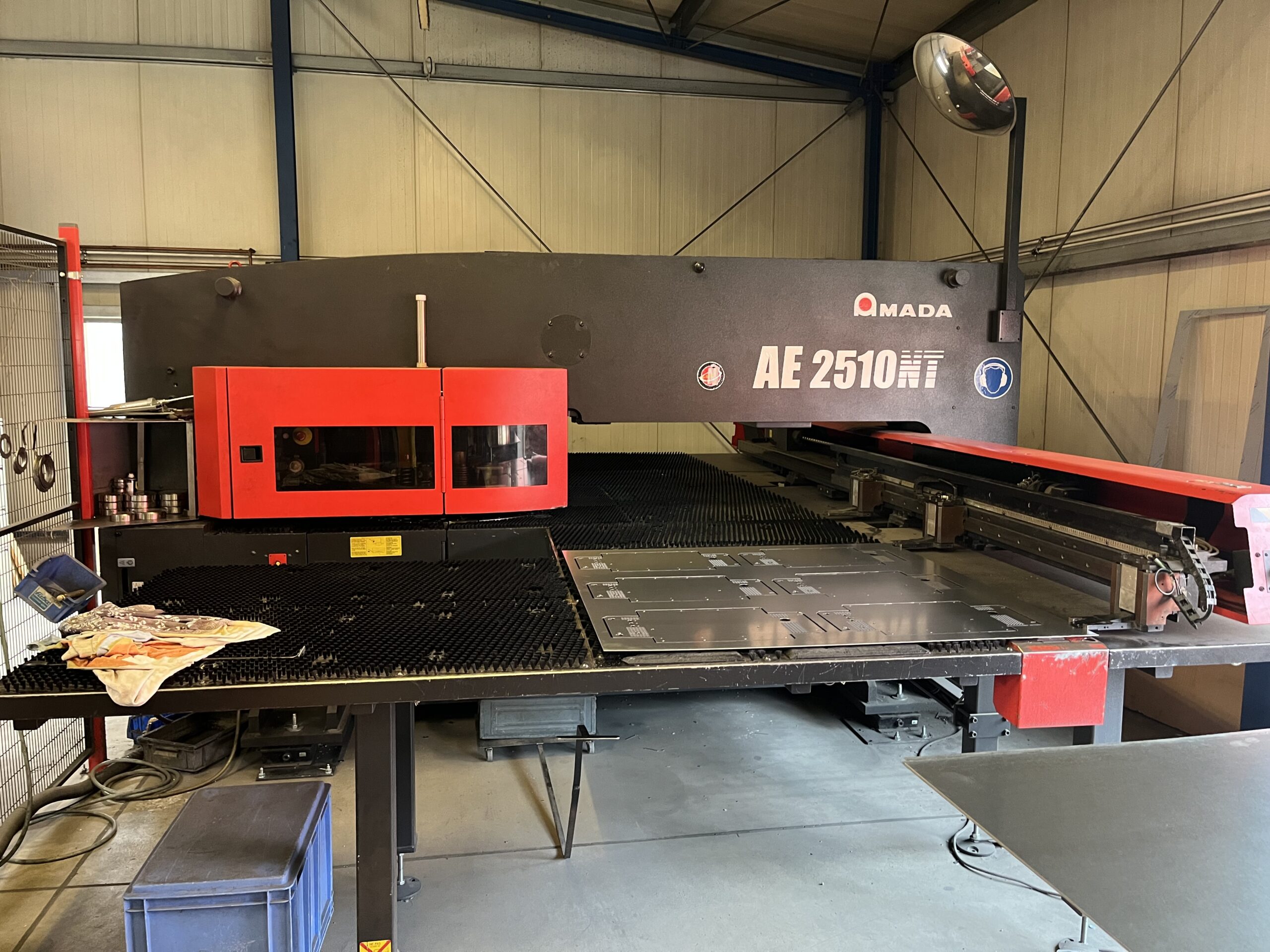

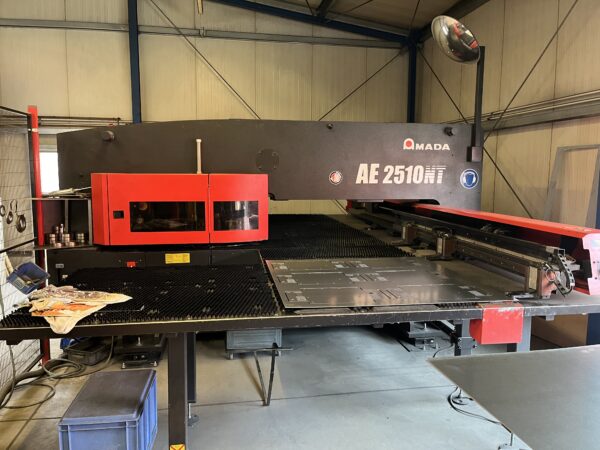

Model	Amada AE2510 Electric Punch, 51 Station Turret, 4 auto index *PHOTO TAKEN PRIOR TO PREPARATION FOR SALE*
Year	2014
Frame Construction	Bridge Type
Numerical Control	AMNC-F
Punching Force	200 kN
Drive System	Single AC Servo Drive
Turret (No. of Stations)	51 Stations: 24 x A (Max. Dia. 12.7mm) 18 x B (Max. Dia. 31.7mm) 3 x C (Max. Dia. 50.8mm) 2 x D (Max. Dia. 88.9mm) 3 x G (Max. Dia. 31.7mm) 1 x H (Max. Dia. 50mm) Auto Indexing: 3 x B (Max Dia 31.7mm) 1 x C (Max. Dia. 50.8mm)
Controlled Axis	X, Y, C, T + A
Axis Travel Distance, X & Y	2500 x 1270 mm
Maximum Simultaneous Feed Rate X/Y	100 m/min
Maximum Punching Hit Rate (25.4mm pitch/ 5mm Stroke )	350 hpm
Positioning Accuracy	+/- 0.1mm
Work Range Without Reposition	2500 x 1270 mm
Maximum Sheet Thickness	3.2 mm
Maximum Material Mass	50 (F1) / 150 (F4) kg

Machine Mass	12 500 KG
Machine Length	4155 mm
Machine Width	5120 mm
Machine Height	2115 mm
