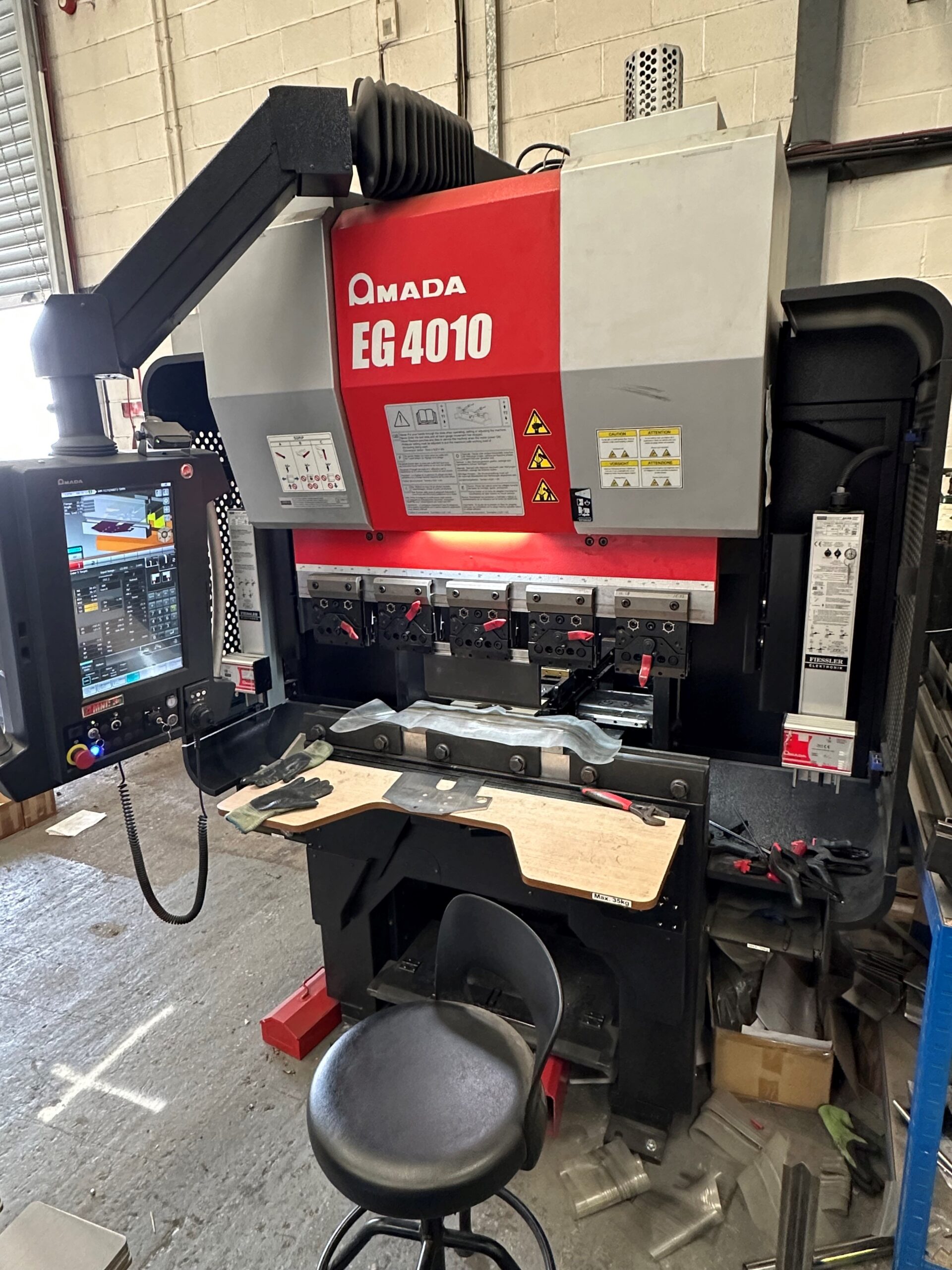

Amada EG-4010 Electric Press Brake, 5 axis (Stk 2070)

Warranty: Parts and labour warranty (UK). Installation and training available.
Availability: Ex stock.
Condition: Available to view in our Warehouse near Sandbach, Cheshire, UK. Jct17 M6.
Price: P.O.A

Share this Page

Model	Amada EG-4010 Electric Press Brake, 5 axis Photo taken PRIOR to preparation for sale
Year	2021
Tonnage	40 tonnes
Beam Length	1050 mm
Distance Between Frames	710 mm
Open Height	420 mm
Upper Beam Stroke	150 mm
Working Height	980 mm (without die holder)
Power Consumption (Y axis servo motor)	5.3 kW
Oil Capacity	0 L
Approach Speed	220 mm/s
Bending Speed	25 mm/s (depending on Vee size)
Return Speed	+/- 0.001 mm
Noise Level	65.5 – 67.6 dB
Machine Mass	2700 KG
Machine Length	1770 mm
Machine Width	1980 mm
Machine Height	2371 mm (with 50mm high block)

Operating Stroke	X axis – 300 mm R axis – 150 mm Z axis – 622 mm
Speed	X axis – 1000 mm/s R axis – 333 mm/s Z axis – 1000 mm/s
Accuracy	X axis – +/- 0.003 mm R axis – +/- 0.05 mm Z axis – +/- 0.02 mm
Control Type	AMNC 3i (automatic off-line programming ready)
Display	Interactive Touch Screen
