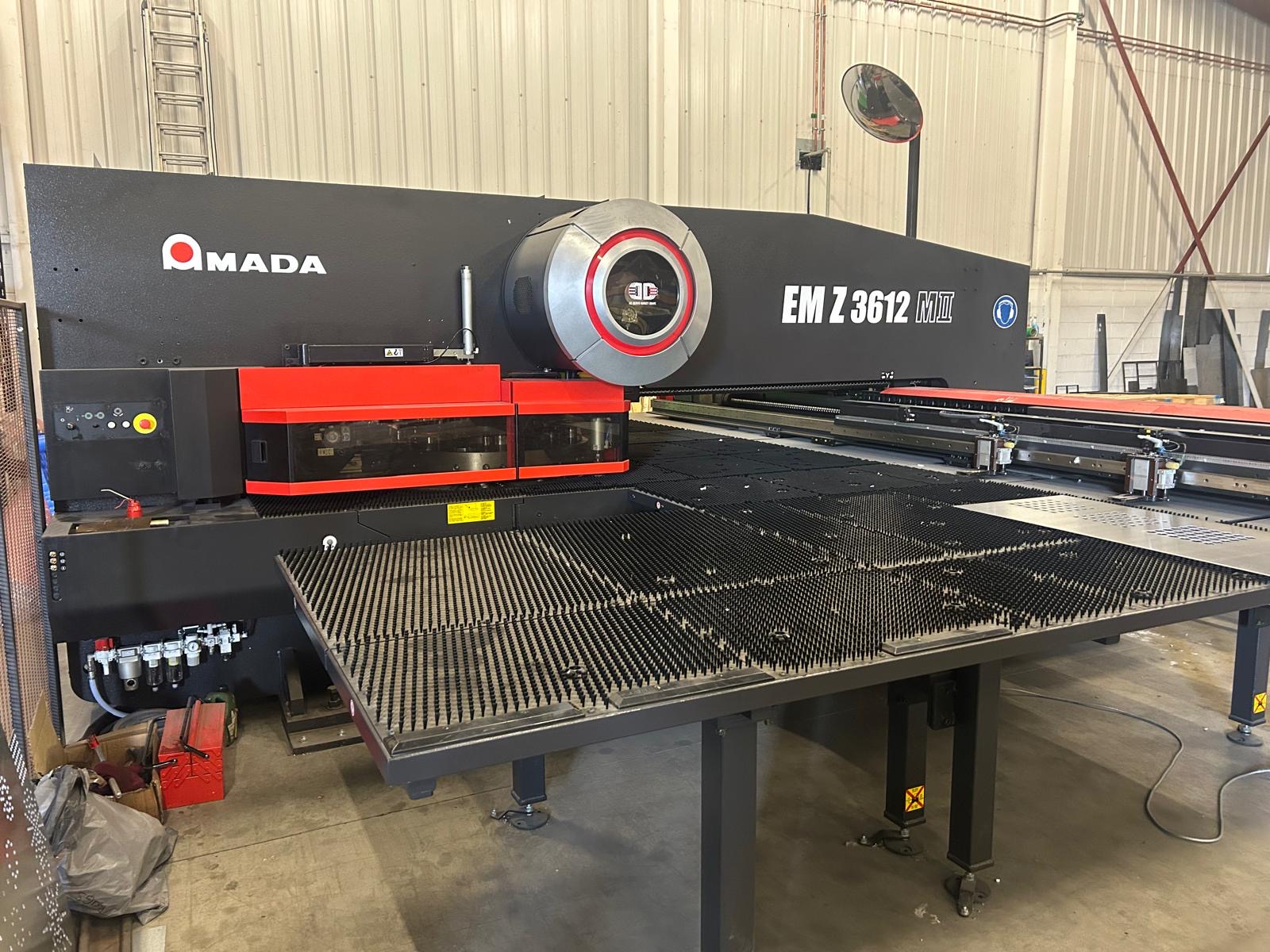

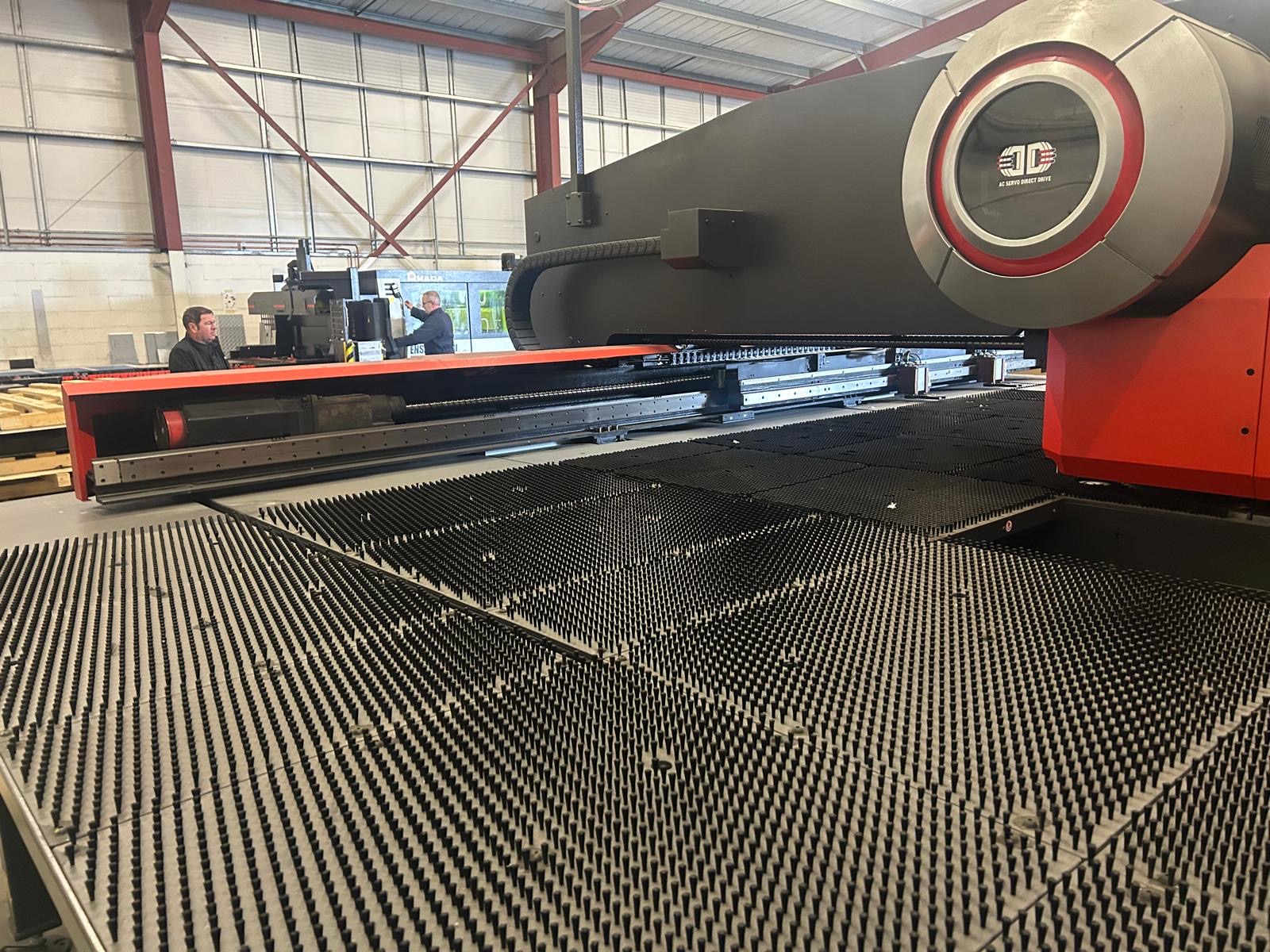

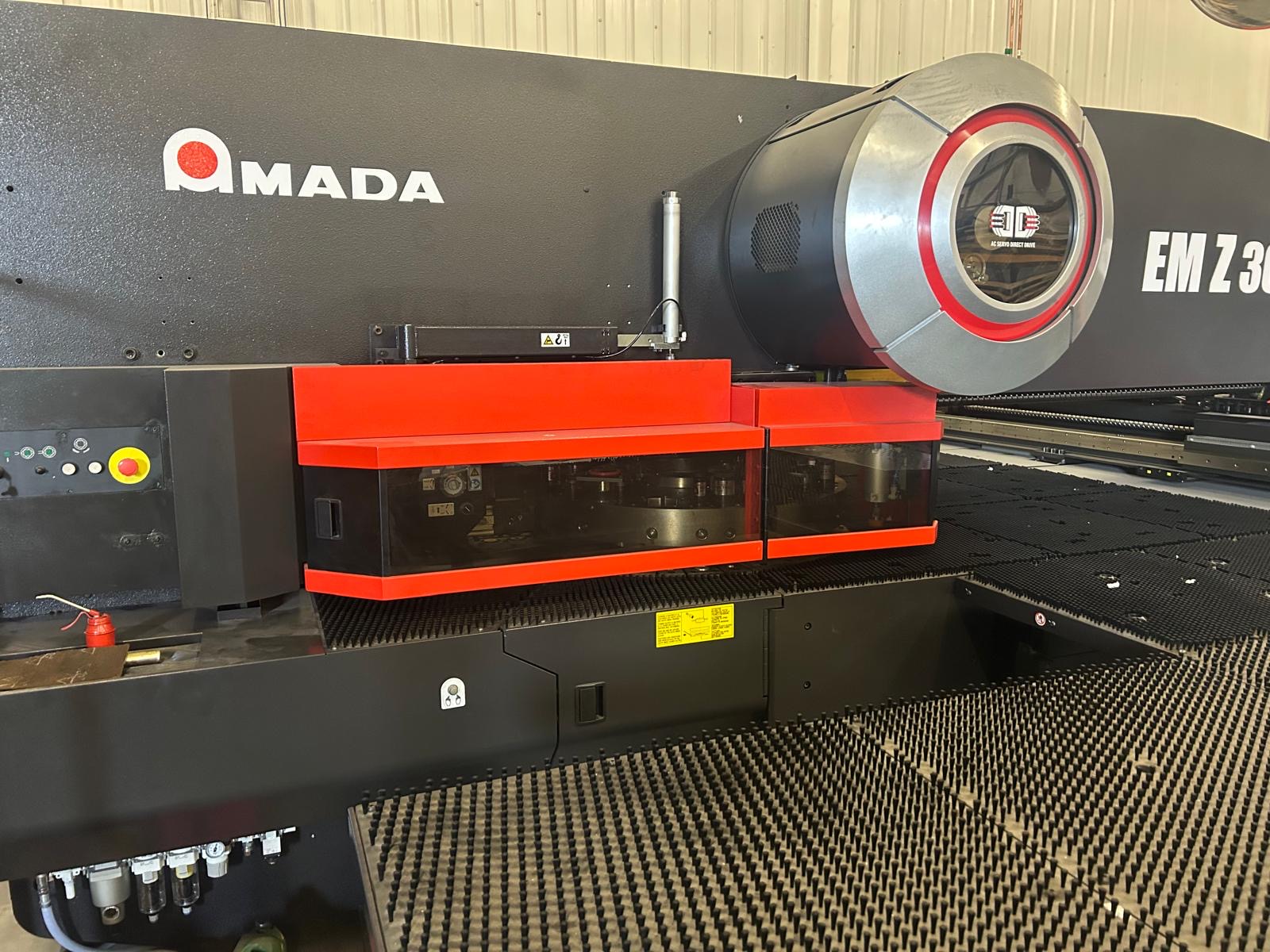

Amada EMZ 3612 MII Electric Punch Machine, 45 Station (Stk 2022)

Warranty: Parts and labour warranty (UK). Installation and training available.
Availability: Ex stock.
Condition: Available to view in our Warehouse near Sandbach, Cheshire, UK. Jct17 M6.
Price: P.O.A

Share this Page

Model	Amada EMZ 3612 MII electric punch, 45 Station Turret with 4 Auto indexing units AS NEW. 87 hours operating time. 833 power on hours
Year	2022
Frame Construction	Bridge Type
Numerical Control	AMNC 3i
Punching Force	300 kN
Drive System	AC Servo, Direct Twin Drive
Turret (No. of Stations)	45 Stations: 24 x A (Max. Dia. 12.7mm) 12 x B (Max. Dia. 31.7mm) 2 x C (Max. Dia. 50.8mm) 1 x D (Max. Dia. 88.9mm) 2 x E (Max Dia 114.3mm) Auto Indexing: 2 x B (Max Dia 31.7mm) 2 x C (Max. Dia. 50.8mm)
Controlled Axis	X, Y, C, T + A
Axis Travel Distance, X & Y	3050 x 1525 mm
Maximum Simultaneous Feed Rate X/Y	128 m/min
Maximum Punching Hit Rate (25.4mm pitch/ 5mm Stroke )	500 (X) him
Positioning Accuracy	+/- 0.1mm
Work Range Without Reposition	3050 x 1525 mm
Maximum Sheet Thickness	4.5 mm
Maximum Material Mass	50 (F1) / 150 (F4) kg

Machine Mass	21 500 KG
Machine Length	5436 mm
Machine Width	6121 mm
Machine Height	2342 mm
