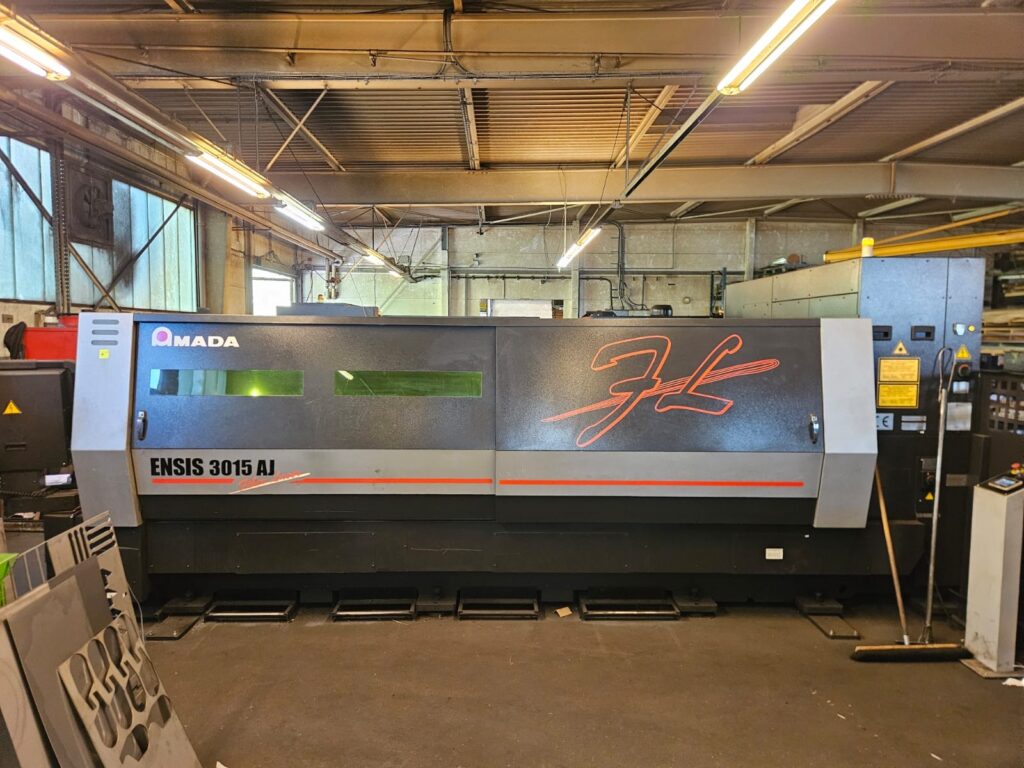

Amada ENSIS 3015 AJ 3kw Fibre Laser Machine with LST-E Shuttle Table (Stk 2086)

Warranty: Parts and labour warranty (UK). Installation and training available.
Availability: Ex stock.
Condition: Available to view in our Warehouse near Sandbach, Cheshire, UK. Jct17 M6.
Price: P.O.A

Share this Page

Model	Amada ENSIS 3015 AJ 3kw Fibre Laser Machine with LST-E Shuttle Table LOW CUTTING HOURS – 23,500
Year	2017
Controlled Axis	X, Y, Z axes (three axes controlled simultaneously ) + B axis
Axis Traverse Distance	3070 x 1550 x100 mm (Z Axis)
Max. Guaranteed Material Thickness	25 mm Mild Steel (with WACS) 20mm without WACS 15 mm Stainless 12 mm Aluminium (A5052) Brass 8mm Copper 6 mm
Max. Processing Dimensions	3070mm x 1550mm
Maximum Simultaneous feed rate	X/Y, 170m/min
Positioning Accuracy	+/- 0.01mm
Maximum material mass	920 Kg
Rated Output	3000W
Processing Surface height	940 mm

Machine Length (including shuttle table)	10136 mm
Machine Width	2840 mm
Machine Height	2432 mm
Machine Weight	9,100 kg
Standard Equipment	Auto Nozzle Changer WACS II Single Lens Processing Front & Side Access X – Direction Conveyor Dust Air Blow Pierce Monitoring Deep EtcCompressed Air Cutting

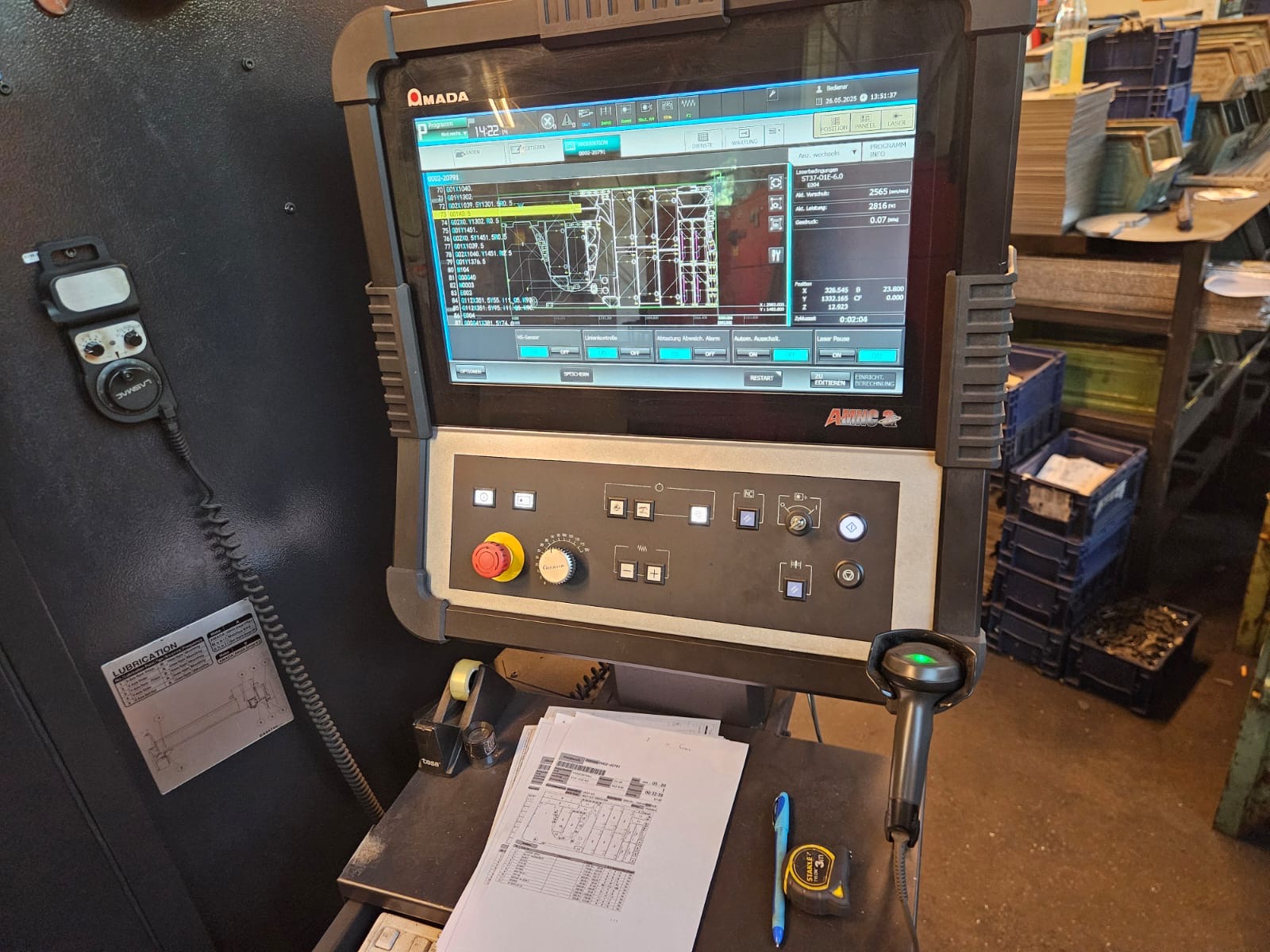

Numerical Control Model:	AMNC 3i
