Amada LC2012 C1 2.5kw Combination Punch Laser Machine (Stk 1767)

Warranty: Parts and labour warranty (UK). Installation and training available.
Availability: Ex stock.
Condition: Available to view in our Warehouse near Sandbach, Cheshire, UK. Jct17 M6.
Price: P.O.A

Share this Page

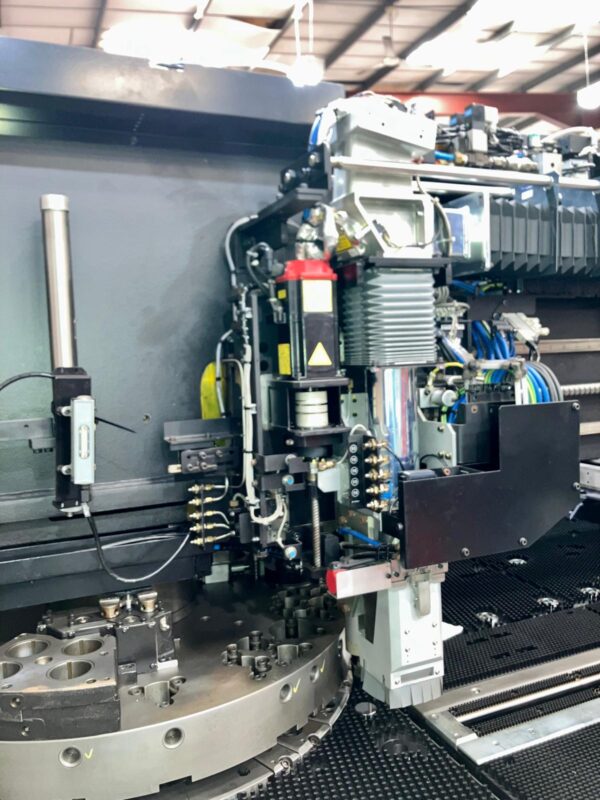

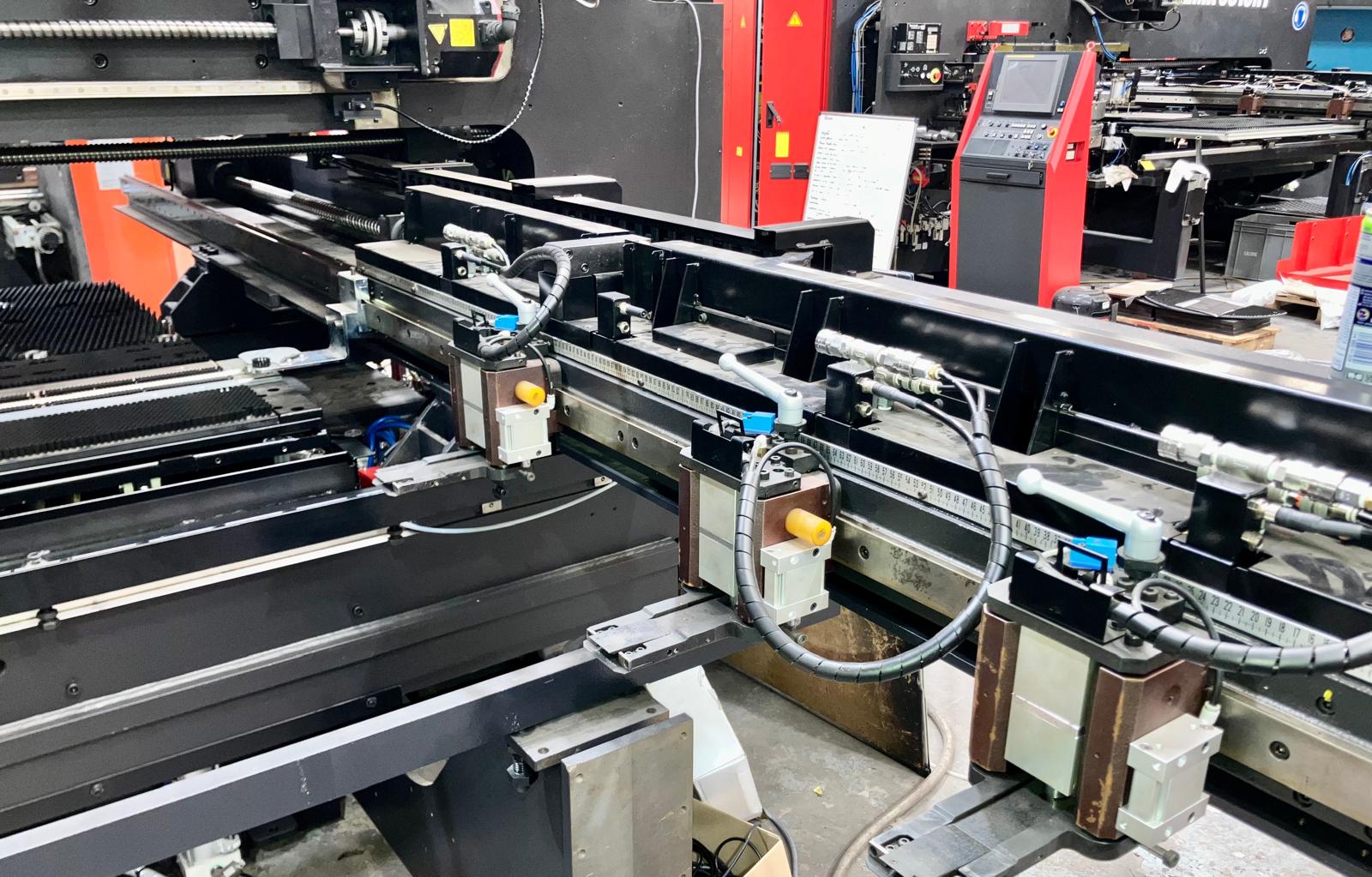

Model	Amada LC2012 C1 2.5kw Combination Punch/Laser Machine PHOTOS TAKEN DURING REMANUFACTURE
Year	2011
Processing Range (Punch) X & Y	2500 x 1270 mm 4000 x 1270mm with one automatic reposition
Processing Range (Laser) X & Y	2000 x 1270 mm 4000 x 1270mm with one automatic reposition
Rapid Feed Rate (Punch) X & Y m/min	80 x 60 mm
Rapid Feed Rate (Laser) X & Y m/min	80 x 60 mm
Processing Accuracy mm	+/- 0.07 mm
Material Thickness (Punch)	6 mm
Material Thickness (Laser)	6 mm
Maximum Material Mass Kg	50 (F1) 150 (F4)
Press Capacity KN	200 KN
Maximum Hit Rate (X axis) Min -1	370 (5 mm stroke)
Maximum Hit Rate (Y axis) Min -1	280 (5 mm stroke)
Power Requirement	22 KVA
Mass of Machine including oscillator and electric enclosure	1800 KG
