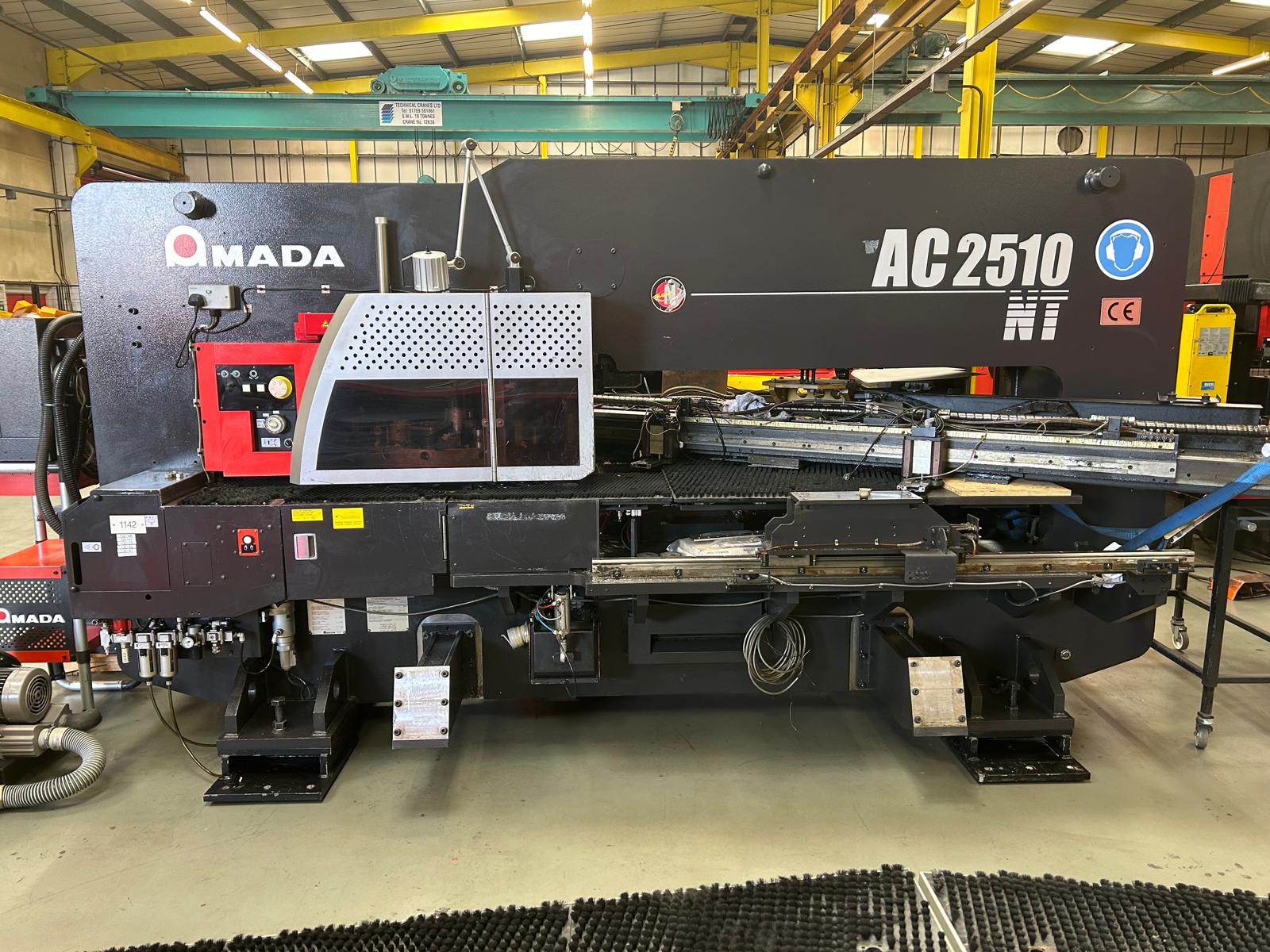

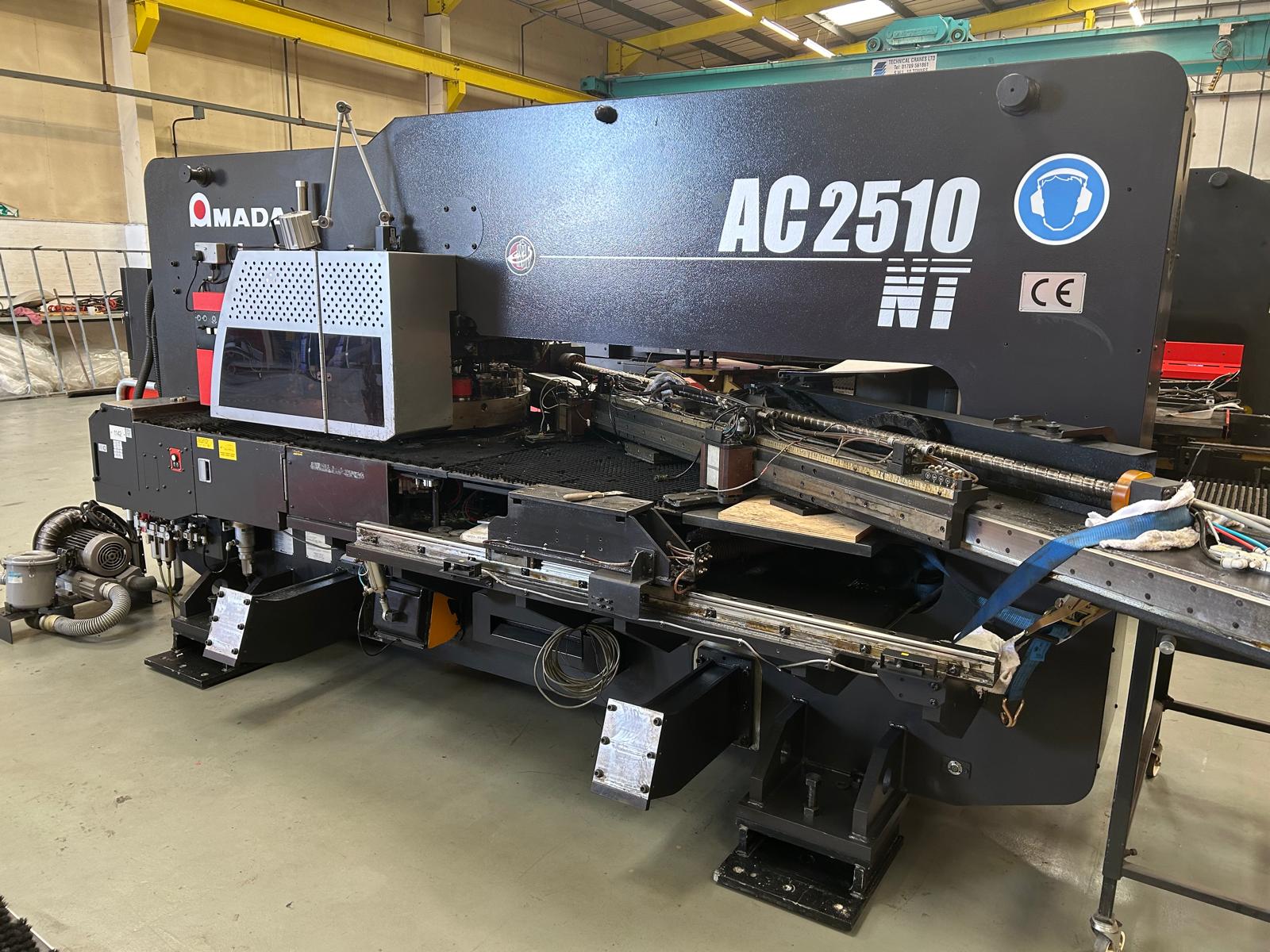

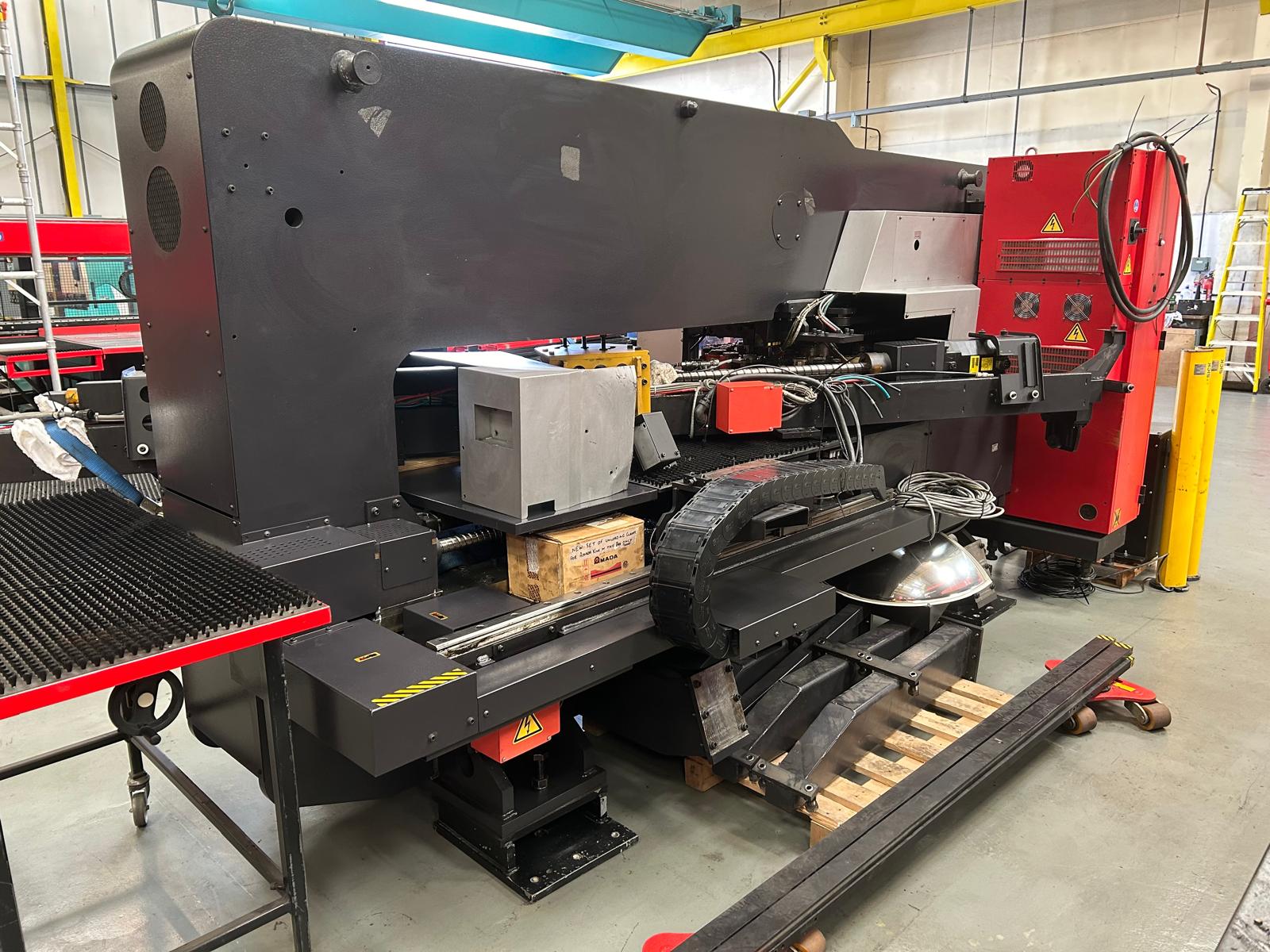

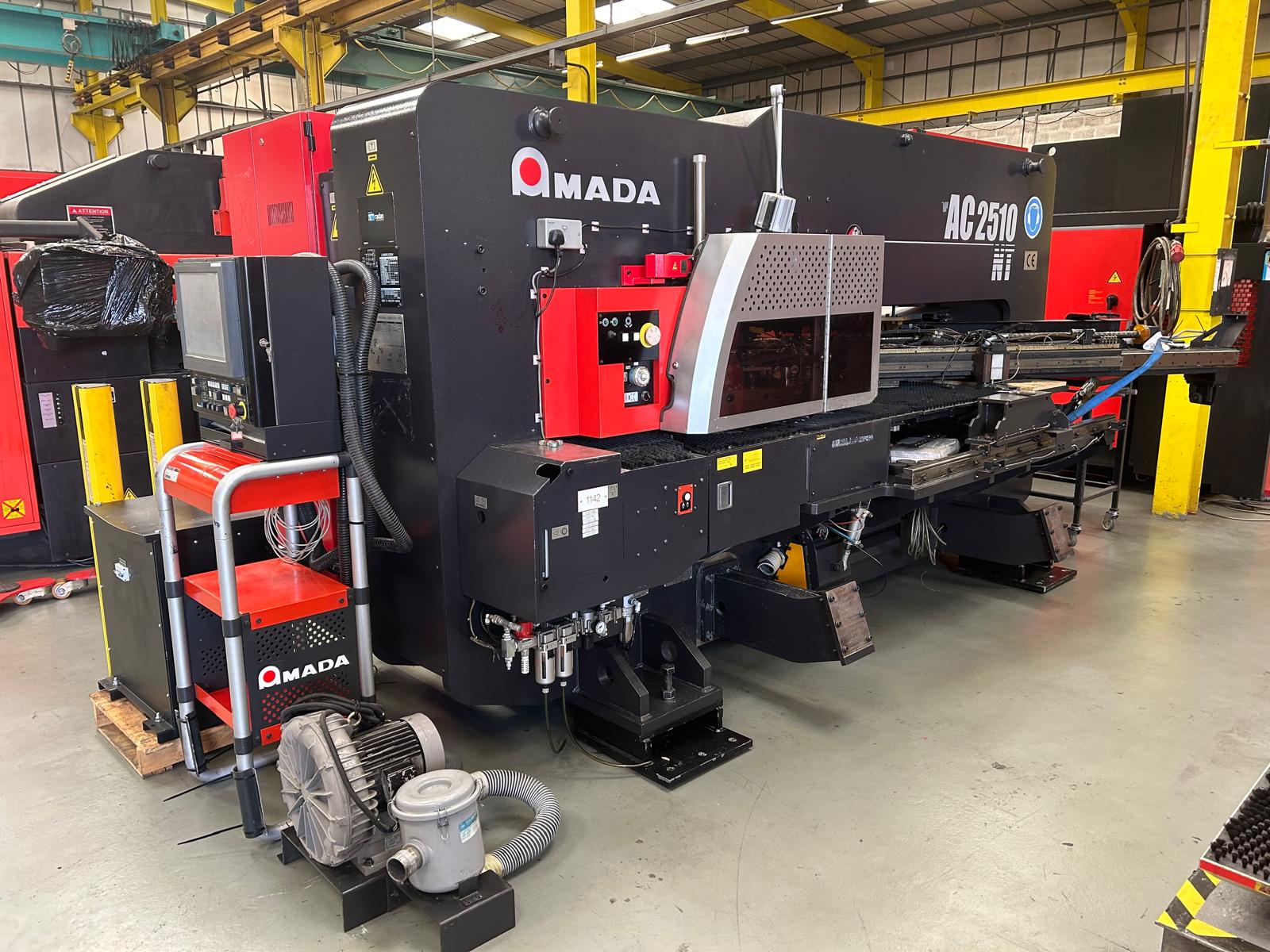

Amada AC2510 Electric Punch Machine, 51 Station, 4 auto index (Stk 2054)

Warranty: Parts and labour warranty (UK). Installation and training available.
Availability: Ex stock.
Condition: Available to view in our Warehouse near Sandbach, Cheshire, UK. Jct17 M6.
Price: P.O.A

Share this Page

Model	Amada AC2510 Electric Punch, 51 Station Turret, 4 auto index
Year	2007
Frame Construction	Bridge Type
Numerical Control	AMNC-F
Punching Force	200 kN
Drive System	Single AC Servo Drive
Turret (No. of Stations)	51 Stations: 24 x A (Max. Dia. 12.7mm) 18 x B (Max. Dia. 31.7mm) 3 x C (Max. Dia. 50.8mm) 2 x D (Max. Dia. 88.9mm) 3 x G (Max. Dia. 31.7mm) 1 x H (Max. Dia. 50mm) Auto Indexing: 3 x B (Max Dia 31.7mm) 1 x C (Max. Dia. 50.8mm)
Axis Traverse Distance	1270 x 2500 mm
Workable Maximum Sheet Size (with auto repositioning)	1270 x 5000 mm
Table Loading Weight	150 kg
Maximum Punching Hit Rate	480 per min
Hit Rate With 25mm Pitch	350 per min
Positioning Speed	80 – 60 mm
Maximum Sheet Thickness	3.2 mm
Control	AMNC-F Windows Based Network Control
	15″ Colour LCD Touch Screen
Machine Mass	13 000 KG
Machine Length	4165 mm
Machine Width	5120 mm
Machine Height	2082 mm
