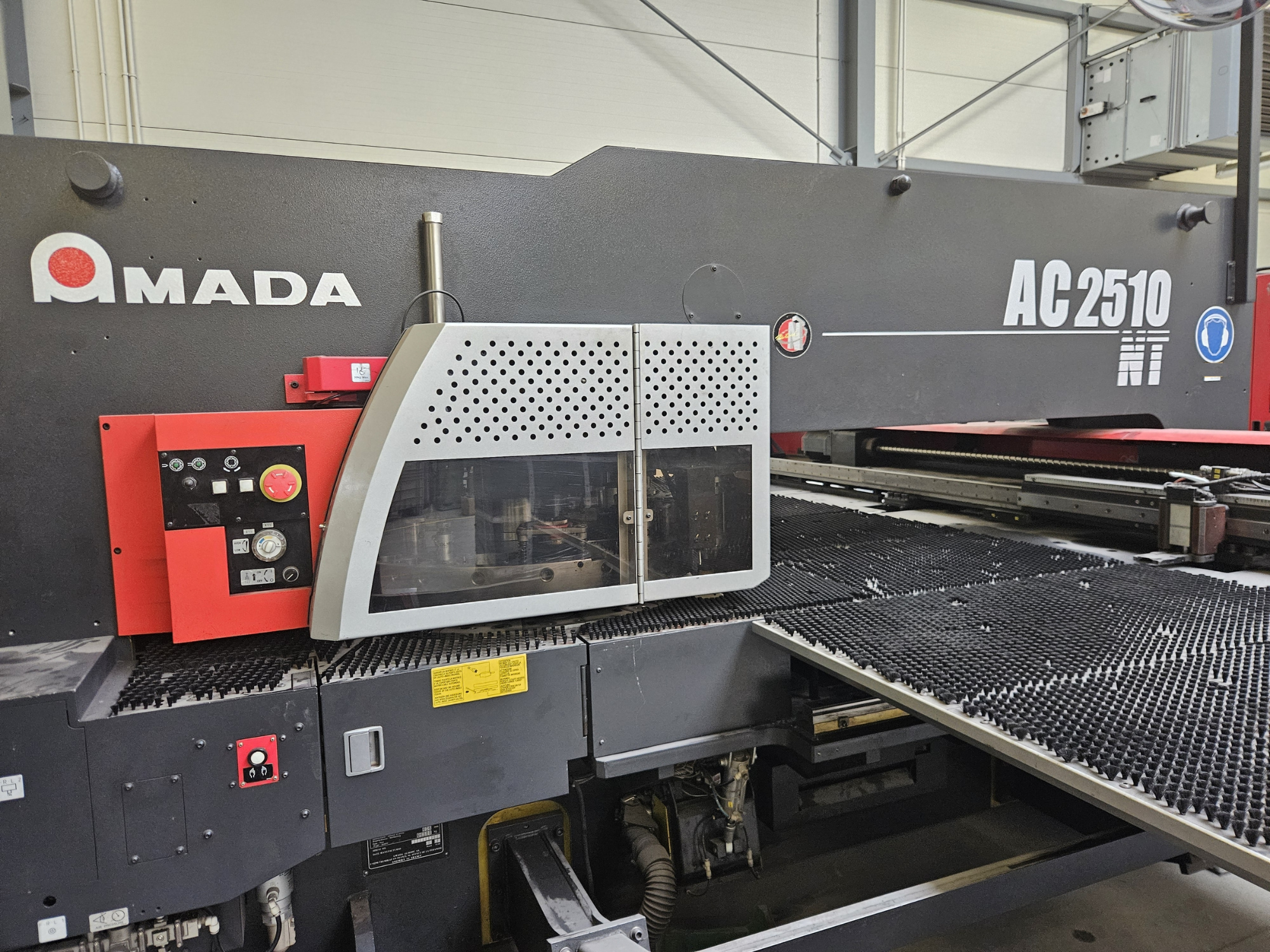

Amada AC2510 Electric Punch Machine, 51 Station, 4 auto index (Stk 2098) (Under Preparation)

Warranty: Parts and labour warranty (UK). Installation and training available.
Availability: Ex stock.
Condition: Available to view in our Warehouse near Sandbach, Cheshire, UK. Jct17 M6.
Price: P.O.A

Share this Page

Model	Amada AC2510 Electric Punch, 51 Station Turret, 4 auto index Under Preparation
Year	2008
Frame Construction	Bridge Type
Numerical Control	AMNC-F
Punching Force	200 kN
Drive System	Single AC Servo Drive
Turret (No. of Stations)	51 Stations: 24 x A (Max. Dia. 12.7mm) 18 x B (Max. Dia. 31.7mm) 3 x C (Max. Dia. 50.8mm) 2 x D (Max. Dia. 88.9mm) 3 x G (Max. Dia. 31.7mm) 1 x H (Max. Dia. 50mm) Auto Indexing: 3 x B (Max Dia 31.7mm) 1 x C (Max. Dia. 50.8mm)
Axis Traverse Distance	1270 x 2500 mm
Workable Maximum Sheet Size (with auto repositioning)
Max Mass of Material	50kg (F1) 150kg (F4)
Max Hit Rate	X Axis 350hmp Y Axis 260hpm (at 25.4mm pitch and 5mm stroke for punching pattern)
Punching Accuracy	+/- 0.1mm and +/- 0.07mm (FA mode)
Turret Rotation Speed	30 rpm
Maximum Sheet Thickness	3.2 mm
Control	AMNC/PC
	15″ Colour LCD Touch Screen
Machine Mass	13 000 KG
Machine Length
Machine Width
Machine Height
