Amada AC255 Electric Punch Machine (Stk 2097) (Under Preparation)

Warranty: Parts and labour warranty (UK). Installation and training available.
Availability: Ex stock.
Condition: Available to view in our Warehouse near Sandbach, Cheshire, UK. Jct17 M6.
Price: P.O.A

Share this Page

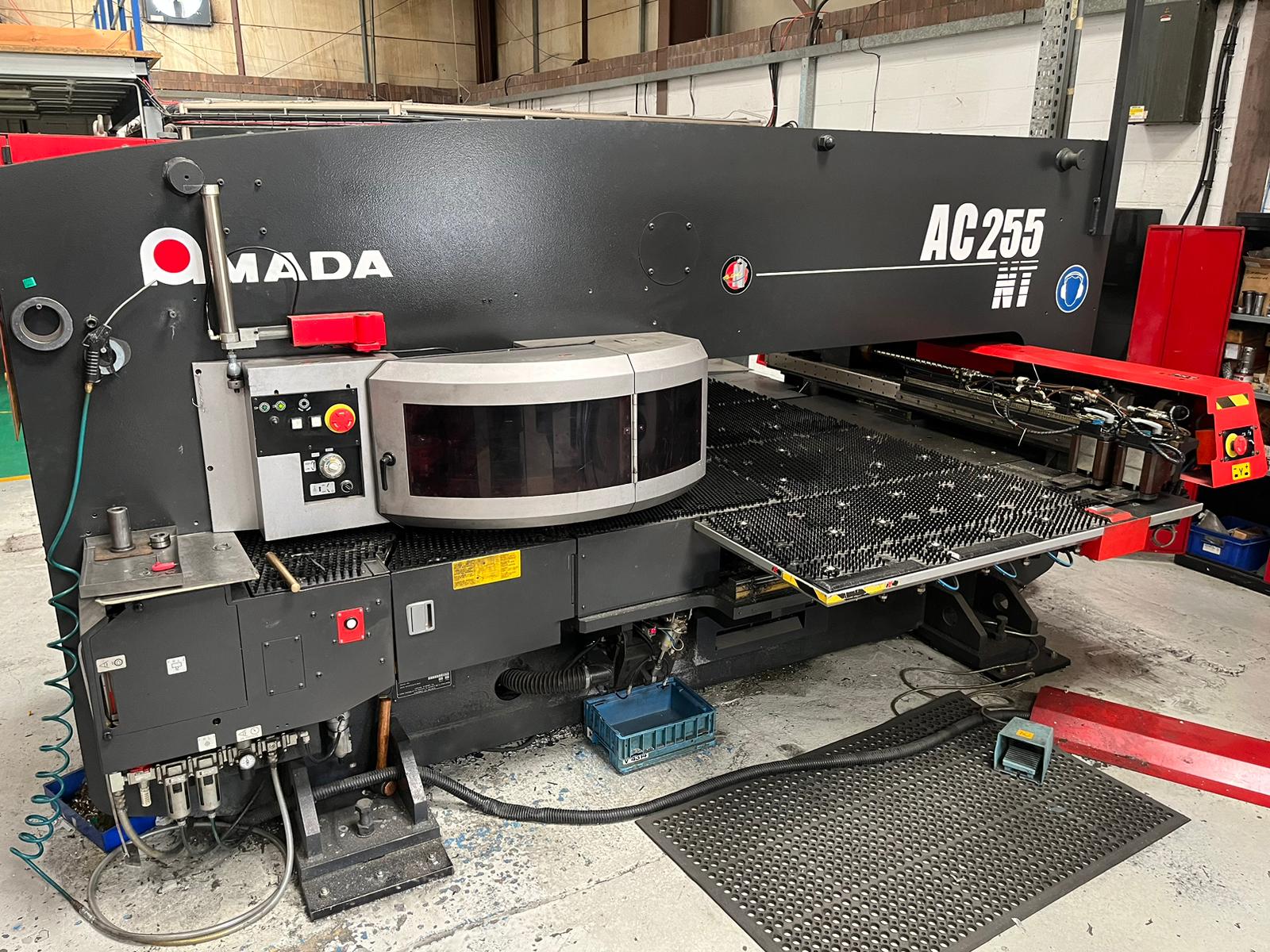

Model	Amada AC255 Electric Punch Photo taken prior to preparation
Year	2009
Frame Construction	Bridge Type
Numerical Control	AMNC-F
Press Capacity	200 kN
Drive System	Single AC Servo Drive
Turret (No. of Stations)	51 Stations: 24 x A (Max. Dia. 12.7mm) 18 x B (Max. Dia. 31.7mm) 3 x C (Max. Dia. 50.8mm) 2 x D (Max. Dia. 88.9mm) 3 x G (Max. Dia. 31.7mm) 1 x H (Max. Dia. 50mm) Auto Indexing: 3 x B (Max Dia 31.7mm) 1 x C (Max. Dia. 50.8mm)
Axis Traverse Distance	1270 mm x 1270 mm
Workable Maximum Sheet Size (with auto repositioning)	1270 mm x 2500 mm
Max Mass of Material	50 (F1) 150 (F4)
Maximum Feed Rate	X: 80m/min Y: 60m/min
Hit Rate	X axis 370 hpm Y axis 260hpm (at 25.4mm pitch & 5mm stroke for punching pattern)
Punching Accuracy	+/- 0.1mm and +/- 0.07mm (FA mode)
Maximum Sheet Thickness	3.2 mm
Control	AMNC-F Windows Based Network Control
	15″ Colour LCD Touch Screen
Machine Mass	12 000 KG
