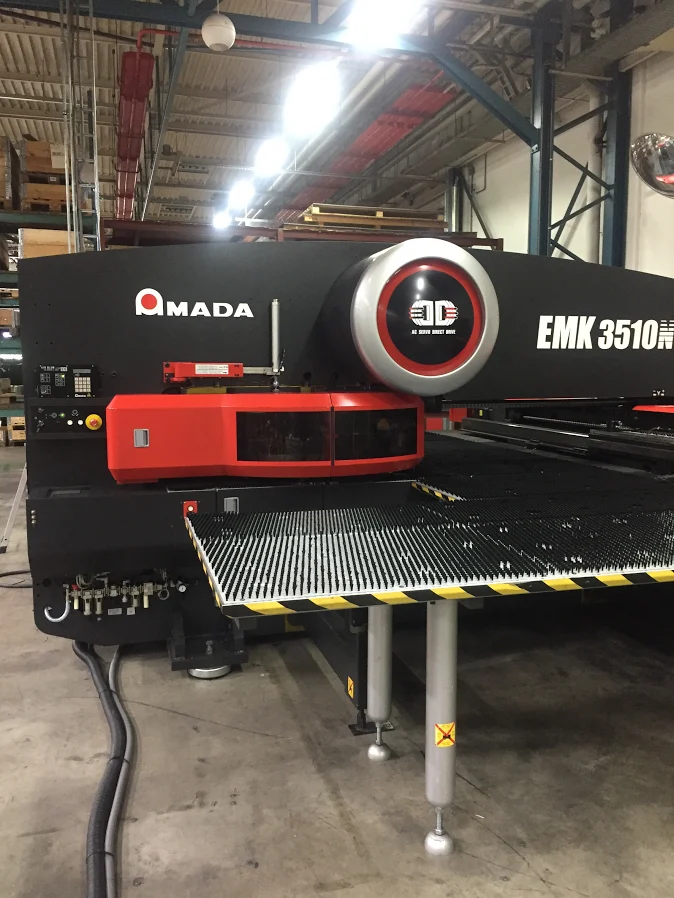

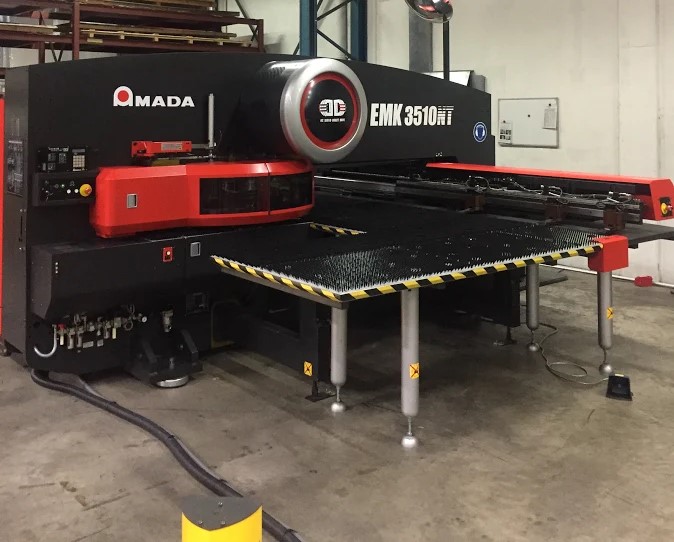

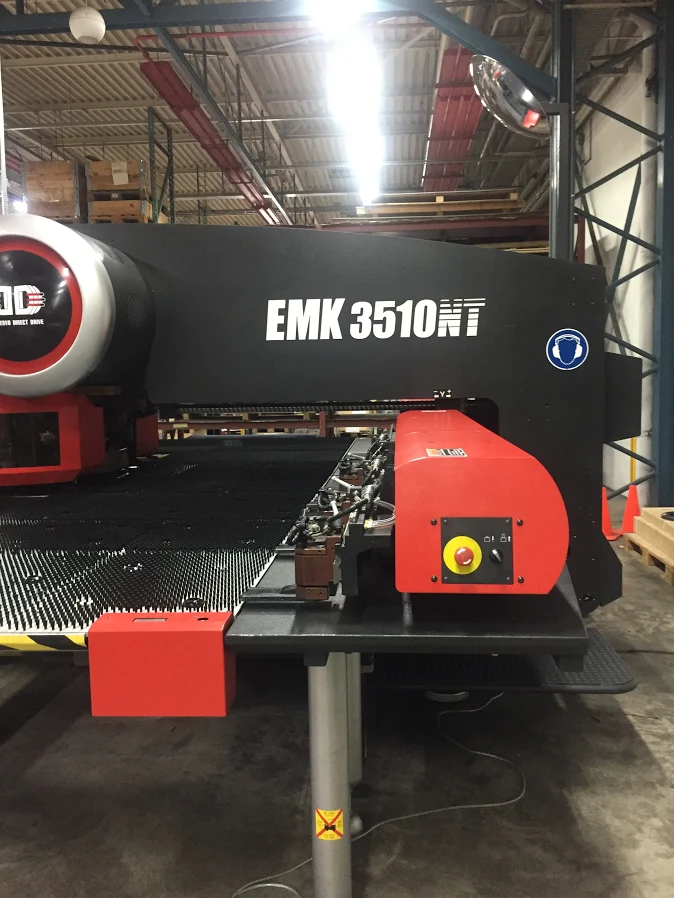

Amada EMK 3510NT Electric Punch Machine, 58 Station (Stk 1944)

Amada EMK 3510NT Electric Punch Machine, 58 Station (Stk 1944)

FEATURES & BENEFITS

  • Warranty: Parts and labour warranty (UK).  Installation and training available.
  • Availability:  Ex stock.
  • Condition:  Available to view in our Warehouse near Sandbach, Cheshire, UK. Jct17 M6.
  • Price: P.O.A
Share this Page

Amada EMK 3510NT Electric Punch Machine, 58 Station (Stk 1944)

TECHNICAL SPECIFICATIONS

Amada EMK 3510NT Electric Punch Machine, 58 Station (Stk 1944)

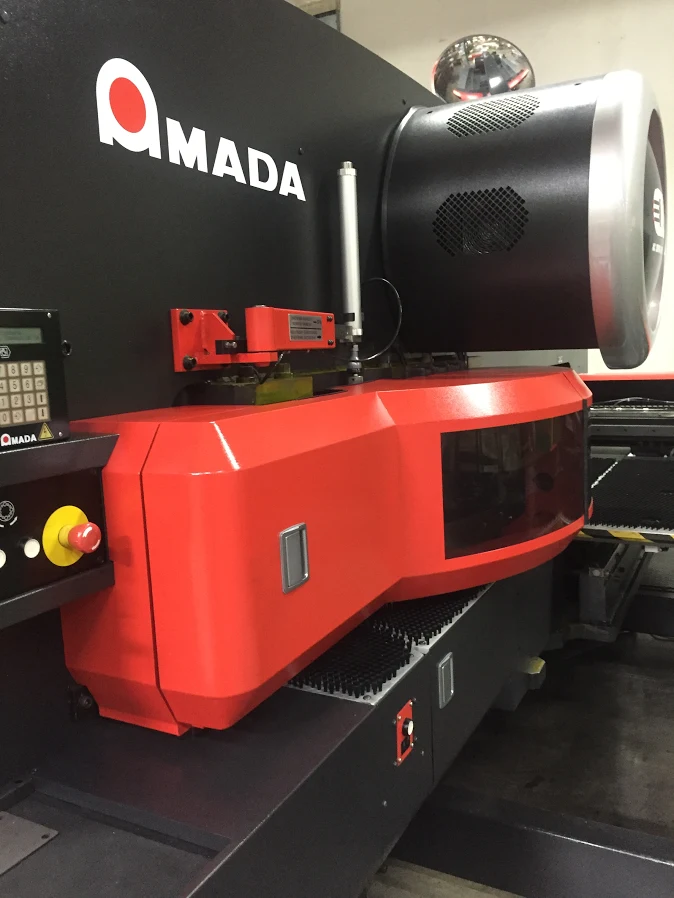

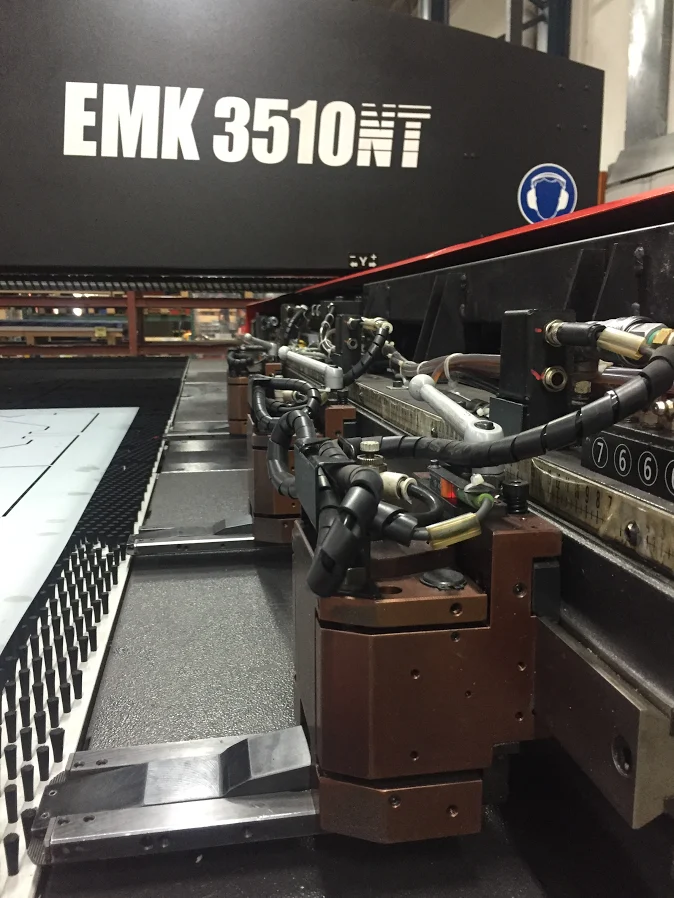

Model Amada EMK 3510 NT electric punch, 58 Station Turret with 4 Auto indexing units
Year 2006
Frame Construction Bridge Type
Press Capacity 30 tonnes (196kN)

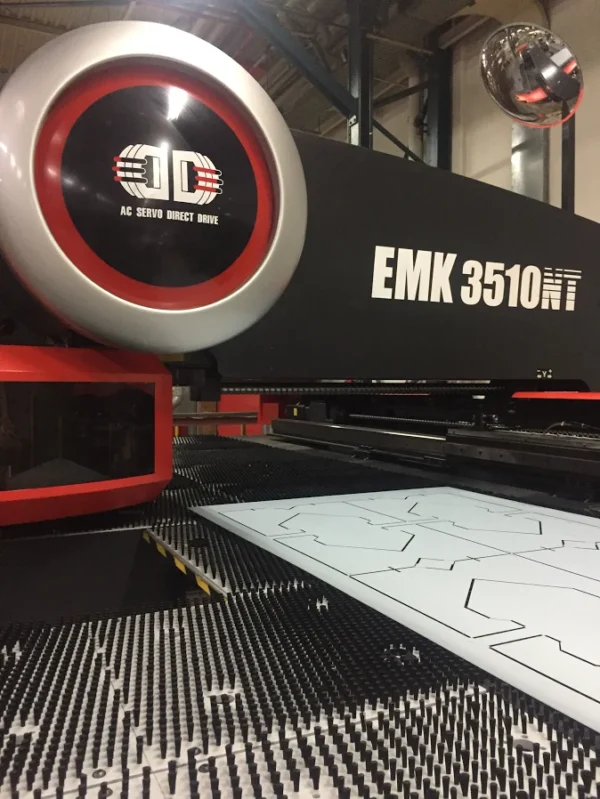

Press Type High speed AC servo direct twin drive
Axis Traverse Distance 1270 x 2500mm
Workable Maximum
Sheet Size with Auto Positioning
1270 x 5000mm
Max. Material Thickness 4.5mm mild steel
Max. Material Weight 150Kg
Max. Hole Diameter 114.3mm
No. of Stations 58 Stations:
24 x A (Max. Dia. mm)
24 x B (Max. Dia. mm)
4 x C (Max. Dia. mm)
2 x D (Max. Dia. mm)
Auto Indexing:
2 x B (Max Dia mm)
2 x E (Max. Dia. mm)
Axis Speed X / Y X 100m/min, Y80m/min
Hits per Minute 500 min (5mm stroke, 25.4mm pitch): 780 min (5mm stroke, 1.0mm pitch): 1800 min (1.4mm stroke, 0.5mm pitch)
Turret Speed
Bi-Directional
330 RPM
Punching Accuracy / – 0.1mm
Positioning Repeatability / – 0.07mm
Ram Stroke Length 37mm
Tool Lubrication Air Blow System
Axis Drives AC Servo Motor
Electric Power
Required
AC200V 3-Phase 5-/60Hz, 27kVA
Air Pressure
Required
5.0 Kgf/cm²
Air Flow
Machine Length 5526mm
Machine Width 5120mm
Machine Height 2318mm
Machine Weight 23 tons
Standard Equipment Safety Lightguards

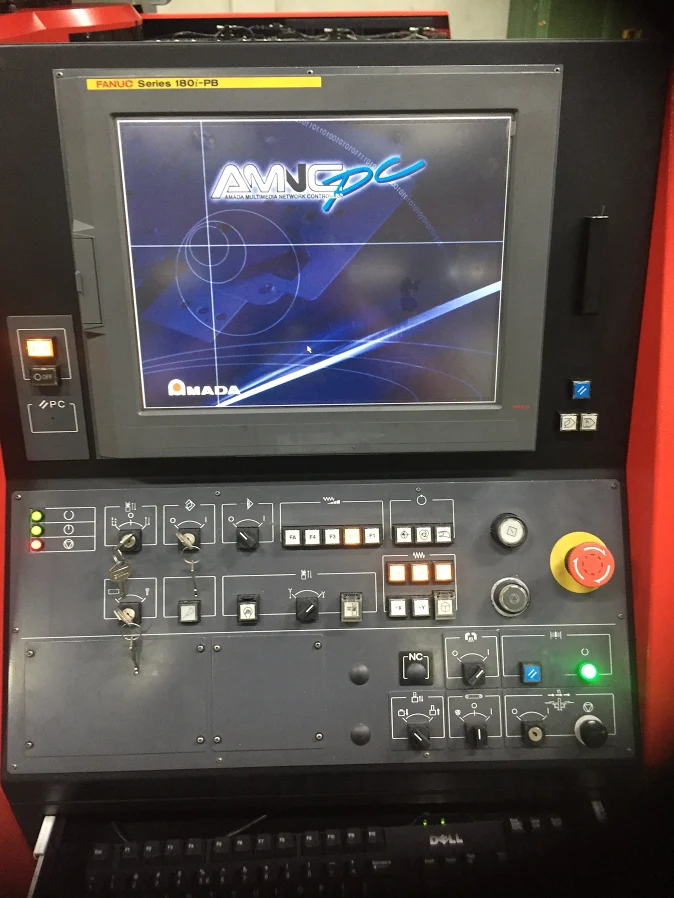

Model Of NC:
Data Interface:
AMNC Touch Screen
Networkable
